304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh

ความคิดเห็นของลูกค้า
ตะแกรงของฉันมาในวันนี้และมันพอดีกับที่สมบูรณ์แบบ ขอขอบคุณ. แจ้งให้เราทราบหากมีที่ใดที่ฉันสามารถแสดงความคิดเห็นในเชิงบวกเกี่ยวกับ บริษัท ของคุณได้!

—— Andrew Mullen

สนทนาออนไลน์ตอนนี้ฉัน

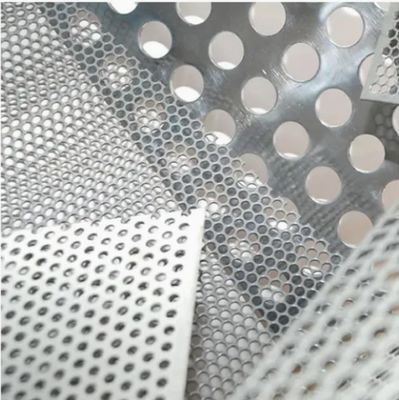

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh
304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh 304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh 304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh

ภาพใหญ่ :  304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: GNEE
ได้รับการรับรอง: SGS
การชำระเงิน:
ราคา: negotiable
รายละเอียดการบรรจุ: บรรจุภัณฑ์ที่คุ้มค่าในทะเลเช่นถาดไม้หรือเหล็กด้วยแถบเหล็ก ฯลฯ
เวลาการส่งมอบ: 5-9 วันทำการ
เงื่อนไขการชำระเงิน: ต่อรองได้
สามารถในการผลิต: 100 ตัน/สัปดาห์

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh

ลักษณะ
เน้น:

304 stainless steel perforated mesh sheet

,

316 stainless steel punching metal mesh

,

round hole perforated metal mesh sheet

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh
Perforated Metal Sheet is one of the most versatile and stylish metal products in our life, featuring various hole sizes, high strength-to-weight ratio, good ventilation and light penetration. It is a metal plate with various shapes of holes on the surface. Product applications are widely used in various industries including pharmaceutical equipment, food and beverage machinery, harvesting machines, dry cleaning machines, sound elimination equipment, refrigeration equipment (central air conditioning), speakers, and filtering equipment.

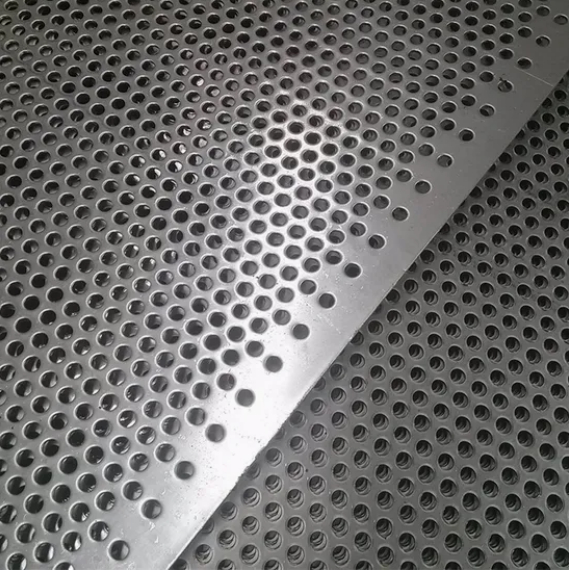

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh 0
Standard Specifications
Hole Diameter Staggered Centers Sheet Thickness Open Area
0.045" | 1.14mm 0.066" 0.033-0.039" | 0.84-0.99mm 0.37
1/16" | 1.59mm 3/32" 0.027-0.033" | 0.68-0.84mm 0.41
1/16" | 1.59mm 1/8" 0.027-0.066" | 0.68-1.69mm 0.23
5/64" | 1.98mm 1/8" 0.027-0.053" | 0.68-1.35mm 0.35
0.081" | 2.06mm 1/8" 0.053-0.066" | 1.35-1.68mm 0.38
3/32" | 2.38mm 5/32" 0.053-0.066" | 1.35-1.68mm 0.33
1/8" | 3.17mm 3/16" 0.027-0.127" | 0.68-3.23mm 0.4
5/32" | 3.97mm 3/16" 0.027-0.066" | 0.68-1.68mm 0.63
3/16" | 4.76mm ¼" 0.027-0.127" | 0.68-3.23mm 0.5
1/4" | 6.35mm 3/8" 0.033-0.111",0.25" | 0.84-2.82mm,6.35mm 0.4
3/8" | 9.52mm ½" 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm 0.51
3/8" | 9.52mm 9/16" 0.059",0.119" | 1.50mm,3.02mm 0.4
1/2" | 12.70mm 11/16" 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm 0.48
1/4" Hex | 6.35mm Hex 0.285 0.027-0.033 | 0.68-0.84mm 0.76
3/8" Sq. | 9.52mm Sq. Cane 0.053-0.066" | 1.35-1.68mm 0.51

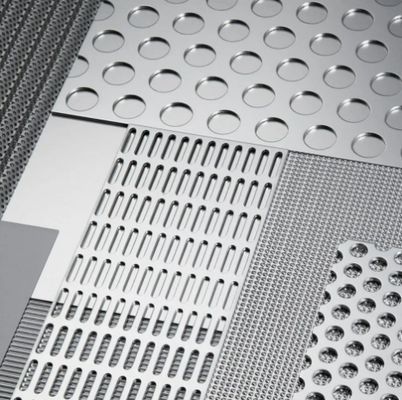

304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh 1
Product Specifications
Product Name Perforated Metal Mesh
Material Stainless Steel, Low carbon Steel, Aluminum, Galvanized Steel, Copper, Brass, etc
Hole Patterns Straight rows, staggered and arbitrary patterns
Thickness 0.5-10mm
Hole Shapes Round, rectangular, square, hexagonal, diamond, triangular, irregular hole
Size Sheets: 1m×2m, 1.2m×2.4m, 1.22m×2.44m etc (other sizes can be customized)
Rolls: 1m×20m, 1.2m×20m, 1.5m×20m etc (other sizes can be customized)
Margin Types With or without margins
304 316 Stainless Steel Perforated Round Hole Mesh Sheet Punching Metal Mesh 2
