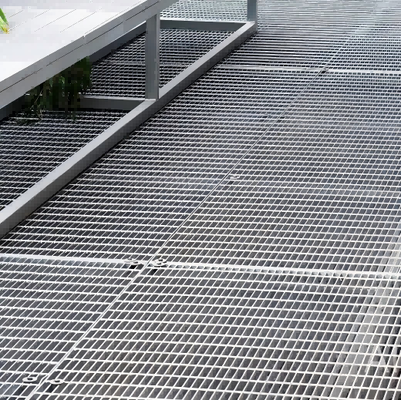

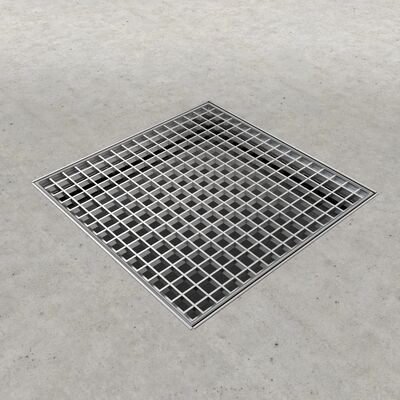

Steel grating is manufactured from high-quality carbon steel or stainless steel. Flat steel bars are arranged crosswise at specific intervals and welded into a grid pattern with square openings. The exterior of steel grating is typically hot-dip galvanized to provide corrosion resistance.
Steel grating offers excellent ventilation, light transmission, anti-slip properties, strong load-bearing capacity, heat dissipation, easy cleaning, and simple installation.
| Material | Carbon Steel, Stainless Steel, Aluminum |
|---|---|
| Size | Customized Sizes Available |
| Color | Silver |
| Surface Treatment | Hot-Dip Galvanized, Painted, Powder Coating |
| Application | Platforms, Stairs, Drainage Ditches, Protective Fences |
| Type | Plain Grating, Serrated Grating, I-Type Grating |
| Bearing Bar Type | Plain, Serrated, I-Type Bar |
| Bearing Bar Dimensions | 20x3, 20x5, 25x3, 25x5, 30x3, 30x5, 32x5, 40x5, 50x5, etc. |
| Bearing Bar Pitch | 20, 30, 40, 50, 60, 80, 100mm |
| Cross Bar | 6, 8, 10mm |
| Cross Bar Pitch | 50, 100mm |
This variant features a 30mm center distance between flat steel bars, meeting US standards with superior surface impact resistance. Widely used in drain covers, stair treads, power plants, sewage treatment plants, chemical plants, airports, and docks.
This type meets British standard specifications for walkways and stairs, ideal for applications with smaller spans. Suitable for warehouse shelves, trestles, protective fences, and similar structures.
Specifically developed for mining applications, this design allows mineral splashes to pass through the openings, maintaining clean and safe surfaces. Commonly used in conveyor line walkways and processing plants.
