รายละเอียดสินค้า:
|
| เน้น: | galvanized steel wire for ACSR,iron wire with warranty,galvanized iron wire on demand |
||
|---|---|---|---|

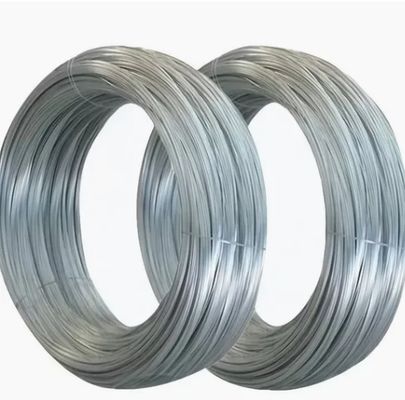

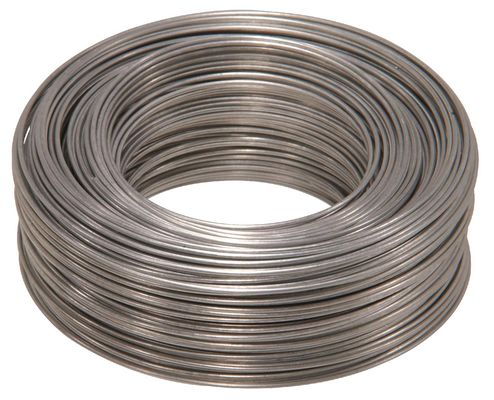

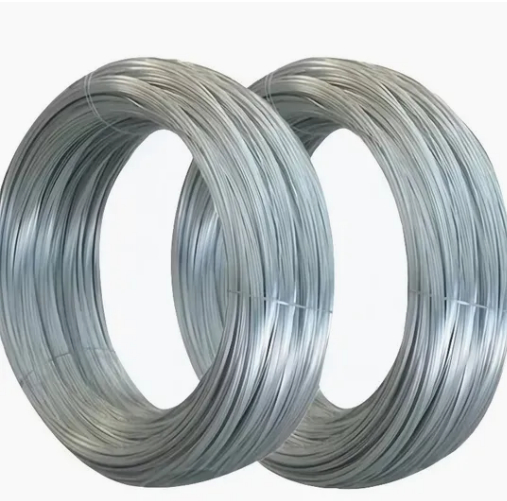

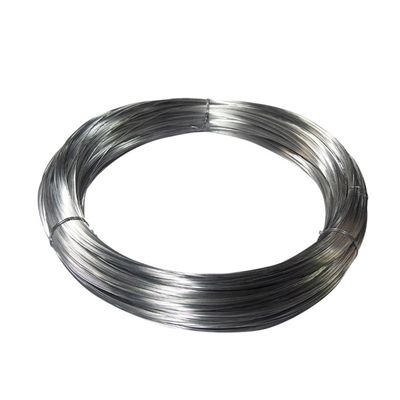

| Product Name | Galvanized steel wire and strand for ACSR |
|---|---|
| Diameter | 1.57-4.77mm |
| Structure | 1*3,1*7,1*19,1*37 |
| Tensile Strength | 400-1700Mpa |
| Package | Coil, Drum, Z2, Z3 |
| Port of Delivery | Xingang, China |
| Standard | ASTM B498, ASTM A475, ASTM A 363, BS EN 50189, BS EN 183, JIS G 3537, GB/T 3428(G1A-G5A), IEC60888, YB/T 5004, etc |
| Custom Order | YES |
| Diameter range (mm) | Stress at 1% Extension Min. (Mpa) | Ultimate Tensile Strength Min. (Mpa) | Elongation in 250mm min. (%) |
|---|---|---|---|
| 1.27-2.28 | 1580 | 1965 | 3 |
| 2.29-3.04 | 1550 | 1900 | 3 |
| 3.05-3.55 | 1515 | 1860 | 3.5 |
| 3.56-4.82 | 1480 | 1825 | 3.5 |
| Diameter (mm) | Class A (g/mm²) | Class B (g/mm²) | Class C (g/mm²) |
|---|---|---|---|
| 1.60-1.90 | 210 | 420 | 630 |
| 1.90-2.30 | 220 | 440 | 660 |
| 2.30-2.70 | 230 | 460 | 690 |
| 2.70-3.10 | 240 | 480 | 720 |
| 3.10-3.50 | 260 | 520 | 780 |
| 3.50-3.90 | 270 | 540 | 810 |
| 3.90-4.50 | 275 | 550 | 825 |
| 4.50-4.82 | 300 | 600 | 900 |
